    ZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills Making

    Ask Lasest Price
    Brand Name : Tianfeng
    Model Number : ZPW29 ZPW31
    Certification : CE/ISO
    Price : welcome to consult
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 units/month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

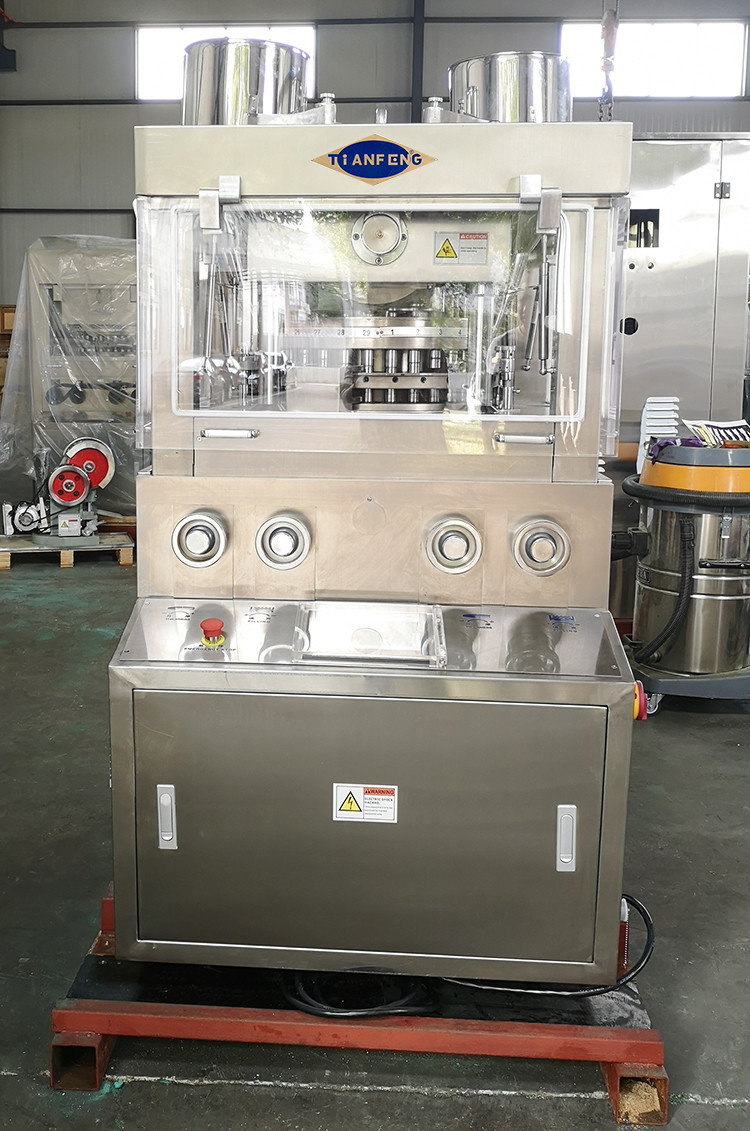

    ZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills Making


    ZPW31 ZPW29 Rotary Tablet Press Machine (Rotary Pill Press) is used to procue round or other shape tablets, such as ringlike shape tabelts.

    Double-pressing type, outputting tablets from both sides, nonstandard die.

    Capable of pressing the particle raw material into larger diameter round tablets and custom shape tablets of various sizes.

    It has double-pressing function, i.e., pre-pressing and main-pressing, the tablet quality will be improved.

    Hand wheel adjusting mechanism with digital display, accurate and flexible.

    Utilize the variable frequency stepless speed control device, easy to operate, safe and reliable.

    Equipped with overload protection device. The machine will stop automatically when the overpressure happens.

    The enclosing shield is fully closed, made of stainless steel. The internal tablet surface is made of stainless steel. All parts contacting medicine are made of stainless steel material or surface treated, free of toxicity, corrosion resistant.

    The rotary tablet surface is treated specially, capable of keeping the surface finish and avoiding the cross pollution, compliant with GMP requirements.

    The four sides of tablet pressing chamber are made of transparent organic glass, and can be opened completely. It is easy to clean and maintain. The secure lighting is equipped inside of the chamber, capable of watching the tablet pressing conditions clearly.


    Technique Parameters of ZPW29 Rotary Tablet Press Machine

    ModelZPW29ZPW31
    Dies (sets)2931
    Max. Pressure (KN)8080
    Max. Dia. of tablet (mm)2522
    Max. Filling Depth (mm)1515
    Thickness of largest tablet (mm)66
    Turret speed (r/min)14-3614-36
    Production capacity (pc/h)48000-12500052000-135000
    Motor (KW)33
    Overall dimensions (mm)1230×950×16701230×950×1670
    Net weight (KG)17001700

    ZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills MakingZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills MakingZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills MakingZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills MakingZPW29 ZPW31 Automatic Rotary Tablet Press Machine For Chemical Pharmaceutical Pills Making

    Our Services

    Product Quality

    All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

    Spare Part Replacement

    First round mold for free, discount if more order. Send one stainless steel dust collector for free.

    Technical Service

    We can provide design, installation and debugging services or remote maintenance teaching.

    Delivery The Cargo To Nearest Port

    We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

    Detail Product Information

    Provide picture, video, instruction and product brochure.

    Reply Timely

    24 hours hot line ,we will reply email within 12 hours.
