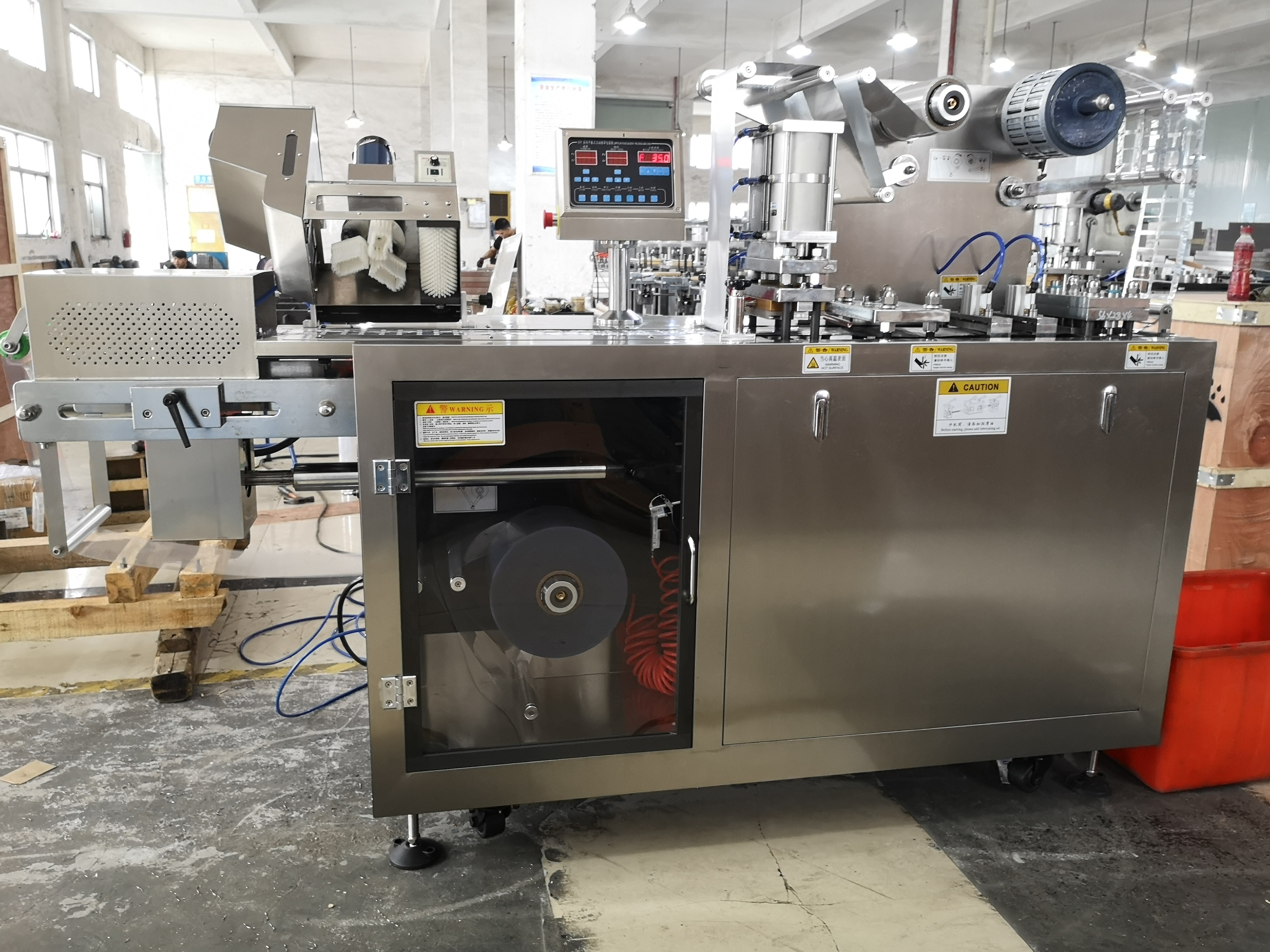

    Flat Alu Alu Blister Alu Pvc Blister Packaging Machine Equipment

    Ask Lasest Price
    Brand Name : Tianfeng
    Model Number : DPP150
    Certification : CE/ISO
    Price : Welcome to consult
    Payment Terms : T/T, , Western Union, L/C
    Supply Ability : 50 unit/year
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Flat Alu Alu Blister Alu Pvc Blister Packaging Machine Equipment

    Products catalogues, can download here

    Shanghai Tianfeng products catalogues.pdf


    DPB-150 flat type Al/PVC & Alu/Alu blister packaging machine 10-35 times/minute 40-120 plates/minute SS304


    Main technical parameters:

    DescriptionUnitSpecifications
    Punch SpeedTimes/min15-35
    Adjustable stroke40-120(freely adjusted)
    Max. Forming Area㎜×㎜140×110
    Max. Forming Depth16
    Main Motor Powerkw1.1
    Upper Heating powerkw0.8
    Lower Heating Powerkw0.8
    Heating Power for Heat Sealingkw0.7
    Air Pump Volume Flowm3/min≥0.2
    Air PressureMpa0.4-0.6
    PVC for Medicine㎜×㎜0.25×150
    Aluminum foil㎜×㎜0.02×150
    Overall Dimensions (L×W×H)mm×㎜×㎜2300×560×1600
    Machine weight620㎏

    Function and characteristic

    1. Adopt the high-power transmission of the domestic latest model, and spread to move the stalk from the row chain to remove other gear transmission error and noise.

    2. Imports of used electrical control systems, customers can request configuration shut fill leakage detection and missing tablets removed devices (Omron sensors). Used imports Frequency Converter.

    3. Unit stages portfolio: PVC shape, feed, heat sealing as a tropical aluminum cold forming, heat sealing, punching a section of the body for hours packaging.

    4. Photoelectric control systems, PVC, PTP, tropical aluminum packaging automatic feed, scrap automatic admission Device, to ensure the long-synchronous multi-position stability.

    5. Additionally photoelectric detector may calibration device; service imports stepper motor drive, the transmission version printing and packaging, optimize packaging grades.

    6. The machine applies: capsules, tablets, sugar-coated, capsules, injections, and other special-shaped medical device, light industry and food, electronic components sealed blister packaging.

    Flat Alu Alu Blister Alu Pvc Blister Packaging Machine EquipmentFlat Alu Alu Blister Alu Pvc Blister Packaging Machine Equipment

    Packaging & Shipping

    Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

    Usually shipped DPB80 Flat-plate Automatic Blister Packing Machine by sea.


    Our Services

    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.


    Installation Services:

    Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

    Customization:

    All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.

    Quality guarantee:

    1. Each machine is manufactured by our professional workers.
    2. Each machine with a strict inspection before out of storage.
    3. Each machine use good quality electric elements.
    4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
    5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
    6. Beside the warranty days, we continue to provide life-long maintenance services.

    FAQ

    1. What about your machine quality?
    Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.


    2. What about your machine price?
    Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!


    3. How can you ensure the machines' quality after we put the order?
    Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
